Lub kaw lus thiab qhov sib txuas tau piav qhia raws li tsim los ntawm ADA cov cai.
Technical Specifications
Hluav taws xob Specifications
Txuas
CCS1 / NAS
AC input tam sim no
313 A
Tswv yim
480V AC ± 10%, 60 Hz
DC tso zis zog
240 kW tsi
Output voltage
200-1000V DC
Tsis tu ncua - lub zog ntau
300-1000V DC
Cable ntev
16.4 ft / 5 m
Qhov siab tshaj plaws tam sim no
300 A; Nruam boost rau 350 A
Input configuration
L1+L2+L3+PE
Fais fab xwm txheej
0.99 puv load
THDi
<5%
Peak efficiency
96%
Ib puag ncig thiab Mechanical
Qhov ntev
W918 × D750 × H2000 hli
Qhov hnyav
Tsawg dua lossis sib npaug li 1058 lb / 480 kg
Npog
NEMA 3R / IK10
Qhov siab
Tsawg dua lossis sib npaug li 6562 ft / 2000 m
Suab nrov
Tsawg dua lossis sib npaug li 80 dB
Kub
-13 ° F txog 149 ° F (-25 ° C rau +65 degree); derate siab tshaj 122℃F (+50 degree)
Cov av noo
5%-95%
Kev sib txuas lus thiab tus neeg siv interface
Kev sib txuas
Wi-Fi / Ethernet / 4G
Kev lees paub tseeb
Daim npav rho nyiaj / QR / RFID
Interface
15-nti touchscreen
raws tu qauv
PAB 1.6J
RFID
ISO/IEC 14443 Hom A
Cov ntawv pov thawj tau teev tseg
Cov cim / program
cTUVus / FCC / CTEP & NTEP / Energy Star / OCA
Tsis tu ncua -Power Range thiab Tsheb Voltage
240kW tsuas yog muaj nyob rau hauv lub hnab ntawv fais fabHauv qab 300V qhov tsis tu ncua- lub zog pib, qhov txuas tam sim no tuaj yeem txwv lub zog xa tawm txawm tias lub txee tau ntsuas 240kW.
Tam sim no boost tsis tsa lub txee lub zog indefinitelyLub 350A txuas ntxiv- cov lus txhawb nqa yuav tsum tau nyeem nrog qhov hluav taws xob, thermal tej yam kev mob thiab kev txiav txim cable teeb tsa.
Session zog txiav txim throughputIb qhov chaw yuav tsum ua qauv kWh xa tuaj rau ib lub sijhawm nyob, tsis yog xav tias txhua lub tsheb tuav lub zog siab tshaj plaws rau kev sib kho tag nrho.
Engineering checkpoint:Siv cov kab hluav taws xob them hluav taws xob ntawm cov neeg sawv cev lub tsheb hluav taws xob los kwv yees lub sij hawm bay thiab xa hluav taws xob txhua hnub.
Kev Taw Qhia Xaiv
01
Siv cov ntaub ntawv luv luv thiab kev tshawb fawb txog kev siv hluav taws xob los txiav txim siab seb 240 kW puas ua haujlwm tau zoo thiab kev lag luam ncaj ncees.
02
Kwv yees lub zog ib zaug los ntawm lub tsheb tiag tiag, tsis yog qhov tshaj tawm tshaj tawm.
03
Paub meej tias cov khoom sib txuas, cable ncav cuag, tam sim no - txhawb txoj cai, kev them nyiaj- lub davhlau ya nyob twg, cov tswv cuab rov qab, cov teeb liab ntawm tes, cov nqi thov thiab cov ntawv pov thawj xav tau ua ntej tus nqi zaum kawg.

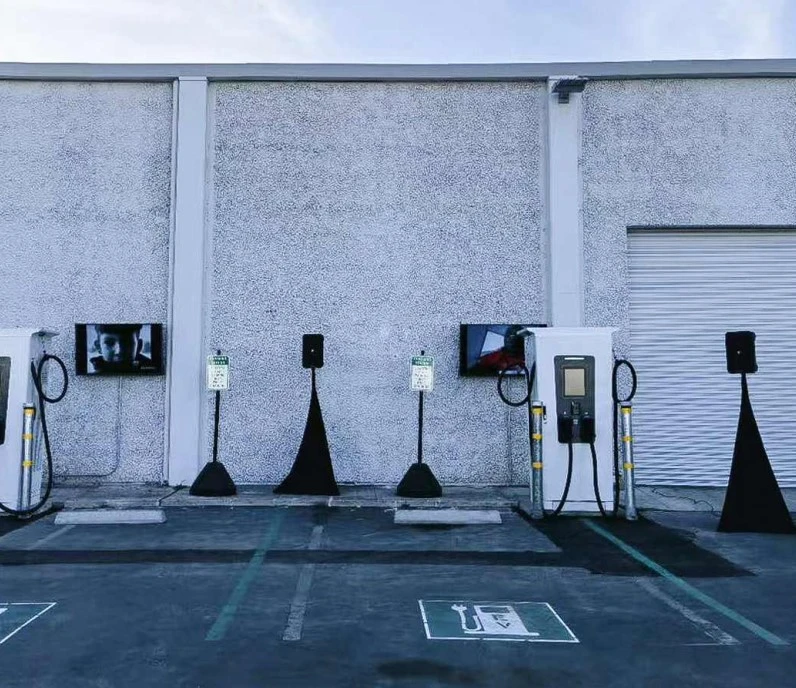

Rau qhov siab dua -throughput charging yard, layout yuav tsum tiv thaiv lub charger thaum khaws nkag, chaw nres tsheb, them nyiaj thiab tawm mus yooj yim to taub. Ib txoj kev npaj zoo tshaj plaws feem ntau tiv thaiv kev poob qis dua li qhov txuas ntxiv.
Kev tshawb fawb fais fab:Paub meej tias muaj 480 V kev pabcuam, kev tiv thaiv sab saud thiab thauj khoom- kev tswj hwm ua ntej xaiv tus naj npawb ntawm cov chaw ua haujlwm.
Kev xaiv zaum kawg thiab kev teeb tsa yuav tsum ua raws li cov ntaub ntawv pom zoo, kev teeb tsa, kev xav tau hluav taws xob hauv zos, qhov chaw tsim khoom thiab cov cai tswj hwm.
